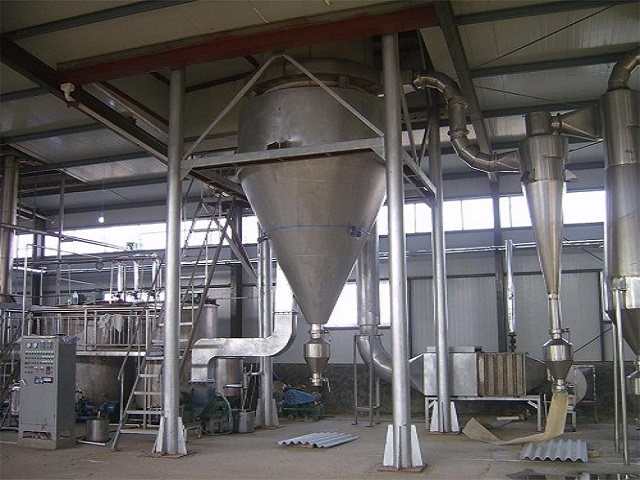

Spray Dryer
![](https://www.keronedryers.com/wp-content/uploads/2024/07/Spray-Dryer1-640x480jpg.jpg)
Spray Dryer
Spray drying is a technique for drying liquids, solutions, and thin slurries; it turns them into powder form. A thin droplet dispersion of the liquid or slurry material to be dried is sprayed into a heated airstream. Either air and material move in counterflow or parallel directions. Since the material is not exposed to heat for an extended period of time throughout the drying process, the spray dryer is perfect for drying materials with high heat selectivity.
![](https://www.keronedryers.com/wp-content/uploads/2023/12/productivity.png)
Efficiency and Performance
![](https://www.keronedryers.com/wp-content/uploads/2023/12/hard-hat.png)
Safety Features
![](https://www.keronedryers.com/wp-content/uploads/2023/12/arm-muscle.png)
Durability and Build Quality
![](https://www.keronedryers.com/wp-content/uploads/2023/12/customize.png)
Customization and Versatility
![](https://www.keronedryers.com/wp-content/uploads/2023/12/file.png)
Compliance and Certifications
![](https://www.keronedryers.com/wp-content/uploads/2023/12/engineering.png)
Environmental Considerations
- Microwave Heating Dryer
- Radio Frequency Heating Dryer
- Conventional Heating Dryer
- Infrared Dryers
- Hot Air Dryer
- Pneumatic/ Flash Dryer
- Spray Dryer
- Drum Dryers
- Box Dryers
- Heat Pump Dryers
- Imperial and Band Dryer
- Coal/Briquette Dryer
- Tunnel Dryers
- Contact Drying- Steam Cylinders/Cans
- Fluidised Bed Dryers
- Rotary Dryers
- Tower Dryers
- Tray Dryers
- Fish Dryer
- Spiral Conveyor Dryers
- Microwave Spices Dryer
- Food Dryers/Food Dehydrator
- Freeze Dryers
- Coir Pith Dryers
- Conveyorised Organic Waste Dryers
- Screw Dryer
- Rotary Dryer
- Fluidised Bed Dryers
- Spray Dryers
- Sludge Dryers
- Agitated Thin Film Dryers
- Rotary Tube Bundle Dryers
- Biomass Dryer
- Manure Organic Fertilizer Dryer
- Cocopeat Coir Dryer Machine
- Coal Dryer Machine System
- Carbonization Machine
Spray drying is a technique for drying liquids, solutions, and thin slurries; it turns them into powder form. A thin droplet dispersion of the liquid or slurry material to be dried is sprayed into a heated airstream. Either air and material move in counterflow or parallel directions. Since the material is not exposed to heat for an extended period of time throughout the drying process, the spray dryer is perfect for drying materials with high heat selectivity.
Depending on the fluid or slurries being processed, Kerone Engineering Solution LTD. manufactures spray dryers with a range of complexity from very simple to quite complicated. Different design aspects include atomization, airstream pattern, air heating systems/technique, separation and collecting unit, and others. The main components of spray dryers are a drying chamber, an atomization and dispersion system for delivering fluid into the chamber in tiny droplets, an air heating system, and a separating device to collect the dried output.
Direct gas firing, the use of fuels, or the use of heat exchangers are all methods for producing hot air. To distribute the fluid components, pressure spray heads, nozzles, and centrifugal atomizers are used. The processed product is separated using cyclone separators, which apply air laterally at the top, or settling chambers, which change the airflow direction to produce gravity-based separation of dried products. Both approaches are shown in the graphic below.
Kerone has a wealth of experience in developing and constructing spray drying machines that may be used for a number of applications in a variety of industries. To date, we have helped a significant number of our clients with their drying requirements. Our talented engineering team and first-rate production practices enable us to achieve accuracy and product quality.
Application
- Food and Beverage Industry
- Pharmaceutical Industry
- Chemical Industry
- Ceramics and Minerals
- Agrochemicals and Fertilizers
- Used to make paint pigments, culinary colors, and dye colors.
- Spray dryers are used in the production of soap and detergent.
- In the milk processing and production industries.
- Skim milk, whole milk, and powdered milk production.
- Processing goods made of eggs.
- Production of simple edible acids and sweets.
- Processing whiteners for coffee and tea.
- Bakery goods made from corn and wheat.
Features
- Having the ability to handle any pumpable product.
- Stress-free transit and installation with modular assembly
- Specifically designed with a controlled environment for quick, trouble-free drying.
- Airflow patterns created for the most effective, secure drying.
- Developed to dry a variety of situations.
- A variety of spray dryer models to satisfy various product requirements.
- The drying chamber’s internal temperature change is quite minimal.
- Uniform drying of all materials supplied into the process.
- Powder coating with a long lifespan.
It is possible to set up numerous drying zones.
